• To fine tune the behavior of a Login Page you need to edit its settings.
• Rather than going through each item on the Settings tab, most of which are self explanatory, we will cover those more difficult items and places where you need a heads-up

• The default theme is called Default and it will redirect to the Bootstrap 5 page.
• There is a special theme called Custom which allows you to provide your own URLs where the redirection should go.
• There are also a couple of pre defined themes. Selecting one of those as a theme will redirect to the older Webix style login pages.
• The items on the drop-down are in fact defined inside the DynamicLogin.php file in /var/www/html/cake3/rd_cake/config/DynamicLogin.php.
• One of the ideas around the Login Pages is to have a common login page URL for the captive portal e.g. https://cloud.radiusdesk.com/cake3/rd_cake/dynamic-details/chilli-browser-detect/
• The CakePHP Controller will then determine:
  • Which login page to serve based on the value of Theme.
  • Which language the page must serve based on the default language selected for the Login Page.

• When you added multiple photos you can use the slideshow feature.
• The duration per slide can be fine tuned by editing the photo's settings.
• You can also enforce the watching of the slideshow which will delay the pop-up of the login screen until after the specified time completed.

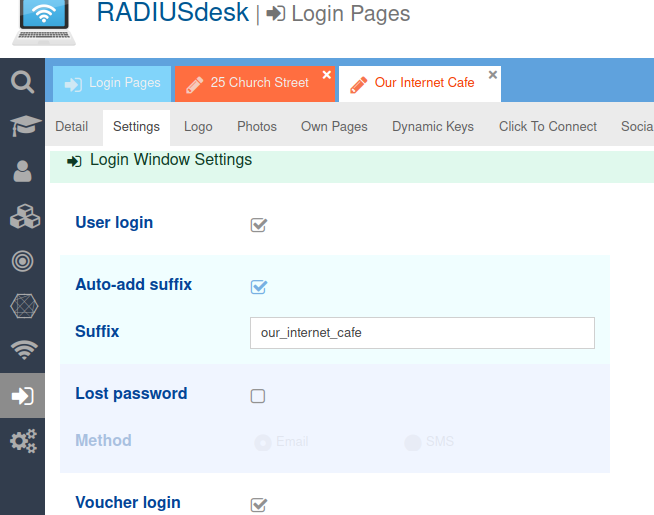

• This feature is handy on pages where a Permanent User register by typically providing their email address and password.
• When the Permanent User is created (Provided the settings on the Realm is such) a suffix will be added.

• Thus you will have a username like dirk@gmail.com@our_internet_cafe.
• Specifying the Auto-add Suffix as our_internet_cafe will then automatically append that value to the username supplied by the user.

• They then simply have to remember their email address and the password they choose.

• There are two places where the system can send the user an email through a Login Page.
  • The Lost Password option.
  • The User Registration option.

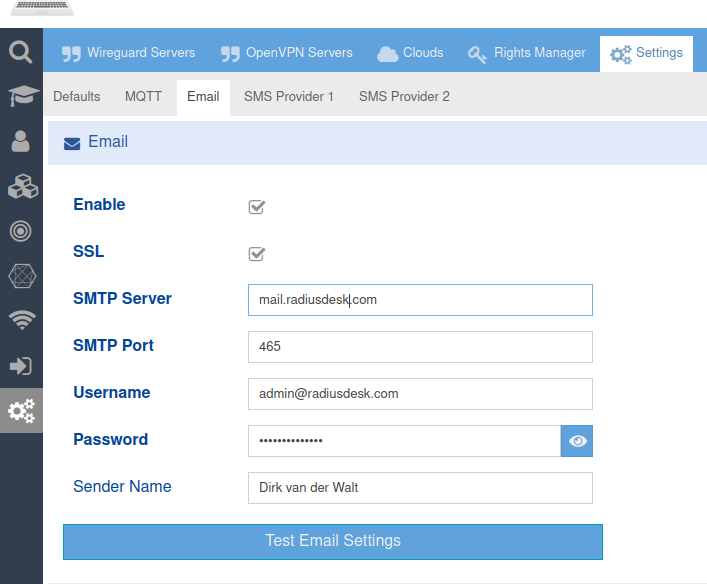

• Remember you first have to configure the system with valid email settings for this to work.

• For T&C you can specify a URL
• Remember if this URL is located on another server, you have to add an entry to the Walled Garden of the Captive Portal for the user to reach this URL.

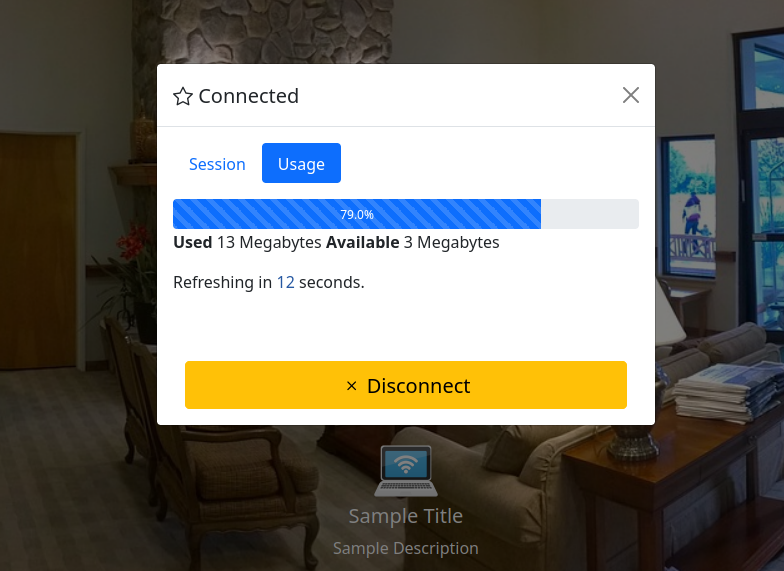

• There is an option where the page can display the usage to a user after they connected.
• This is handy for a voucher based system or a system that uses permanent users with top-ups.

• Support for Arabic is now also included.
• There are however a small tweak you should do for it to work in an optimal way.
• Edit the /var/www/html/login/bootstrap5/index.html page.
• Remove the default Bootstrap 5 Stylesheet.

<!--Comment the line below out if you are planning to implement languages including Arabic-->
<!--<link href="css/bootstrap.min.css" rel="stylesheet">-->

• Activate the inclusion of it in JavaScript (towards the bottom of the index.html page)

if(i18n == 'ar_AR'){
    $('#htmlMain').attr('dir','rtl');
    $('#htmlMain').attr('lang','ar');
    //RTL Stylesheet
    $('<link/>', {
       rel: 'stylesheet',
       type: 'text/css',
       href: 'css/bootstrap.rtl.min.css'
    }).appendTo('head');
}else{
    //Normal Stylesheet (if you did comment out the normal Bootstrap stylesheet - activate this section for non-arabic languages

    $('<link/>', {
       rel: 'stylesheet',
       type: 'text/css',
       href: 'css/bootstrap.min.css'
    }).appendTo('head');

}

• This tweak will allow the RTL and normal stylesheet to co-exist thus allowing you to serve pages in Arabic and other languages.
• Not doing the tweak will have a restricted effect on the RTL styling.

• When you enable user registration for a login page you have to specify the Realm and the Profile the newly registered user will belong to.
• One popular option is to choose a Data Top-Up type of profile.
• If you choose such a profile it is very important to give the user its first Top-Up value in order to impose a limit to the data the user can use.

• The /var/www/cake3/rd_cake/src/Controller/RegisterUsersController.php file has a section which you can activate which will automatically add the initial Top-Up for you when the user registers.
• Simply change $add_topup = true; and specify the value of the initial Top-Up

//============== SMALL HACK 26 MAY 2022 ===============
//==== USE THIS TO ADD THE INITIAL DATA / TIME FOR USER REGISTRATION WITH **TOP-UP** PROFILES ====
//=====================================================

$add_topup = true;
if($add_topup){
    $postTopupData  = [
        'user_id'           => $q_u->id, //We make the owner of the Login Page the owner or the Top-Up
        'permanent_user_id' => $responseData['data']['id'], //Permanent User who gets the Top-Up
        'type'              => 'data',  //Type (data, time or days_to_use)
        'value'             => '10', //**Change VALUE**
        'data_unit'         => 'mb', //**Change VALUE**
        'comment'           => 'User Reg First TopUp', //Comment to ID them
        'token'             => $token //Token of the Login Page owner
    ];
    $topup_add_url  = 'http://127.0.0.1/cake3/rd_cake/top-ups/add.json';
    $topup_response = $this->_add_initial_topup($topup_add_url,$postTopupData);
    $postData['top_up'] = $topup_response;
}
//-----------------------------------------------
//======== SMALL HACK 26 MAY 2022 ===============
//----------------------------------------------

• As of June 2022 we added two options specific for CoovaChilli based captive portals.
• The one can specify if the JSON Interface is not to be used (for whatever reason e.g. it might not be compiled with this option)
• The other option is to use CHAP instead of PAP.

• When you serve the Login Page from public a server with a FQDN and want to do Ajax calls to Coova Chilli's JSON interface, most modern browsers only allow these Ajax calls to be over HTTPS.
• For this then to work you need configure Coova to include HTTPS support. (Port 4990)
• Not all Coova Chilli instances include this support and the certificates required for this support to work correct further complicates things.
• When we specify to the Login Page NOT to use the JSON Interface the login page engages /var/www/html/login/bootstrap5/js/sConnectSimple.js instead of /var/www/html/login/bootstrap5/js/sConnect.js to connect and disconnect the user.
• There is however a tradeoff and the session detail will be missing after successful authentication.
• Use this option for devices like the Teltonika routers.

• Coova Chilli typically uses PAP authentication.
• For this to work it uses a UAM service with a UAM secret to encrypt the password.

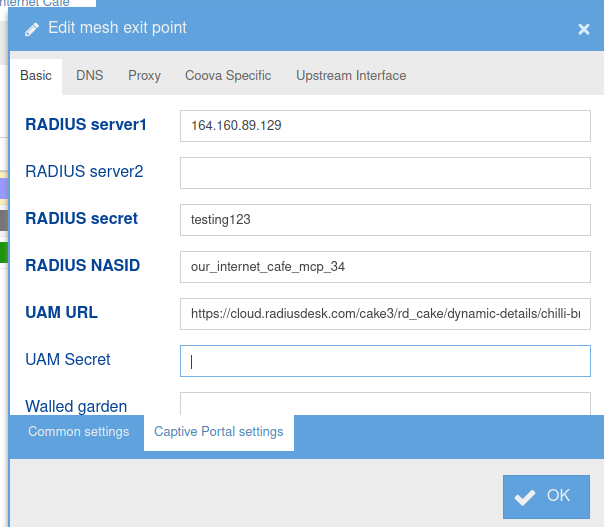

• We can also opt to use CHAP instead and NOT use the UAM service.
• For this to work correct you need to leave out the UAM Secret when configuring CoovaChilli.

• MESHdesk and APdesk now also allow you to leave the UAM Secret out in its configuration.
• Also make sure your MESHdesk firmware on OpenWrt is the latest that includes this support.

• This then brings us to the end of the discussion on the settings.
• Be sure to check out the other Wiki Pages that will cover other aspects of the Login Pages.
